Chemical Dosing Pumps

Having made their mark for enabling smooth and non-pulsating flow of liquids with varying viscosities, abrasiveness and shear sensitive properties. Roto Chemical Dosing Pumps are also known for ensuring high accuracy and repeatability of +/- 1%. Due to their capabilities for handling a flow as low as 0.68 LPH, these kinds of pumps are best suitable for low-flow applications. The maximum flow that these pumps can handle is up to 500 LPH. Roto chemical dosing pumps are a good choice for applications requiring a pressure up to 24 bar. These pumps are considered to be the best for precise dosing applications, both intermittent and continuous dosing duties and proportionate dosing of media.

Dosing Pumps – The best choice for precise metering applications

These pumps are developed for low flow applications that demand high accuracies and repeatability with unique advantages of smooth and non-pulsating flow. These dosing pumps can handle clean and clear liquids.

The pump is ideal for either intermittent or continuous dosing duties. These dosing pumps can handle minimum flow as low as 0.68 LPH to 500 LPH & ensure proportionate dosing of media.

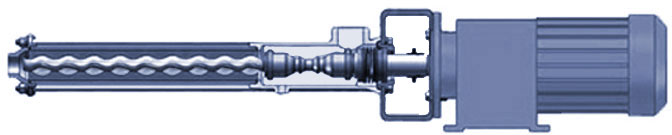

RJ Series Pump

Capacity: between 0.68 – 500 lph
Pressure: up to 24 bar

RJ Series Pump

Catalogue

Dosing 'RJ' Series Pump
Dosing ‘RJ’ Series Pumps

Size RJ01 RJ03 RJ07 RJ14 RJ30 RJ80L
Capacity
LPH
7 17 42 84 166 460
GPM
0.03 0.076 0.185 0.371 0.732 2.025
Pressure
Bar
24 24 24 24 24 6
PSI
348 348 348 348 348 87

WETTABLE HOUSING COMPONENTS:
• Cast Stainless Steel

STATOR:
• Natural • Nitrile • High Nitrile • EPDM• Chloro-Sulphonated Rubber • Fluoroelastomer • Aflas • HNBR

ROTOR:
• Stainless Steel

COUPLING ROD:
• Stainless Steel

SHAFT:
• Stainless Steel

OTHER EXOTIC MATERIALS:
• Duplex • Super Duplex • Alloy 20 • Haste Alloy

ROTOR SURFACE COATINGS:
• Ceramic Coatings • Tungsten Carbide • Hard Chrome Plating

Dry Running Protection Device:
To prevent the stator damage due to dry running specially developed temperature sensor is screwed into the stator wall to monitor the operating temperature. Due to any reason if the pump runs dry, the stator temperature will increase. Roto DRP would switch off the pump at preset temperature.

Dry Running Protection Device

Pressure Switch:
To prevent the pump from damage due to over pressurization in the discharge as well as low pressures beyond the capability of the pump. This system trips the pump and protects the pump as well as the system.

Pressure Switch

Gauges (Pressure, Vacuum, and Differential):
These devices are especially important for the system with dynamic working characteristics, that require constant monitoring. The selection of gauge requires consideration of process, environment, accuracy, dial size, connection & mounting. It is advised to limit the normal working pressure to 25-75% of the scale of the gauge.

Gauges



Relief Valves:
In addition to relieving excess pressure from closed-top vessels or piping systems, these normally closed valves provide system control benefits. It is versatile and widely utilized valve. Its compact size, ease of setting, readjustment and repeatability, all contribute to its popularity. The pressure setting is done manually.

Relief Valves



Strainers:
A Strainer is an inexpensive “insurance” for protecting pumps. There is often unwanted matter present which can cause serious problems. Dust, foreign matter, or even clumps of product itself, can clog or damage critical & expensive equipment. Another factor to consider is the cost of downtime.

Strainers

ROTO SEAL CODE ‘Q’

MEDIA PROPERTIES: Low to high viscosities with solids.
APPLICATIONS: Domestic & industrial sewage treatment.
DESCRIPTION: Single acting, unbalance, single helical coil spring .elastomeric bellow seal and bi-directional.
PRESSURE RANGE: Up to 24 bar

ROTO SEAL CODE ‘Q’

Waste Water Treatment

Pharma

Cosmetics

Chemical

Mining

Food
